Beam scanning of a phased array antenna

Beijing Institute of Technology | Ming-Jian Li

The following MATLAB code is a companion code for the course on Artificial Intelligence and Simulation Science. It functions to calculate the beam scanning process of a phased array antenna.

1
clear;clc;
2
freq=300e6;   omega=2*pi*freq;  c=3e8;
3
lambda=c/freq;    k=2*pi/lambda;
4
d=lambda*0.5;
5
M=6
6
N=6
7
R=(M+1)*d/2;    f=1*R*2;
8
xm=-R+d:d:R-d;  yn=-R+d:d:R-d;
9
[x y]=meshgrid(xm,yn);
10
rf=[0 0 f];  u0hat=[0 0 1];
11
qe=1;
12
theta=linspace(0,pi/2,200);phi=linspace(0,pi*2,200);
13
[THETA,PHI]=meshgrid(theta,phi);
14
nImages = 24;
15
fig = figure;
16
thetabeam=-pi/6;
17
phibeam=0;
18
for idx=1:nImages
19
    if idx<nImages/2
20
        thetabeam=thetabeam+pi/6*4/nImages;
21
    else
22
        thetabeam=thetabeam-pi/6*4/nImages;
23
    end
24
    % phibeam=phibeam+2*pi/nImages;
25
    E_total=zeros(200,200);
26
    for im = 1:M
27
        for in = 1:N
28
            rmn=[x(im,in) y(im,in) 0];
29
            rm_rf=rmn-rf;
30
            mag_rmn_rf=norm(rm_rf,2);
31
            phimn(im,in)=k*(mag_rmn_rf ...
32
            -(x(im,in)*cos(phibeam)+y(im,in)*sin(phibeam))*sin(thetabeam) );
33
            reflect_amp(im,in)=1;
34
            E_total=E_total+reflect_amp(im,in).*exp(1i.*(phimn(im,in)+k.*d.*((in-1/2).*cos(PHI)+(im-1/2).*sin(PHI)).*sin(THETA)));
35
        end
36
    end
37
    Ex=abs(E_total).*sin(THETA).*cos(PHI);
38
    Ey=abs(E_total).*sin(THETA).*sin(PHI);
39
    Ez=abs(E_total).*cos(THETA);
40
    set(gcf,'Position',[100 100 640 480])
41
    surf(Ex,Ey,Ez,'EdgeColor','none');
42
    shading interp
43
    colormap jet
44
    axis([-20 20 -20 20 0 40]);
45
    drawnow
46
    frame = getframe(fig);
47
    img{idx}=frame2im(frame);
48
end
49
timedelay=0.2;
50
filename = 'scan.gif';
51
for idx = 1:nImages
52
    [A,map] = rgb2ind(img{idx},256);
53
    if idx == 1
54
        imwrite(A,map,filename,'gif','LoopCount',Inf,'DelayTime',timedelay);
55
    else
56
        imwrite(A,map,filename,'gif','WriteMode','append','DelayTime',timedelay);
57
    end
58
end

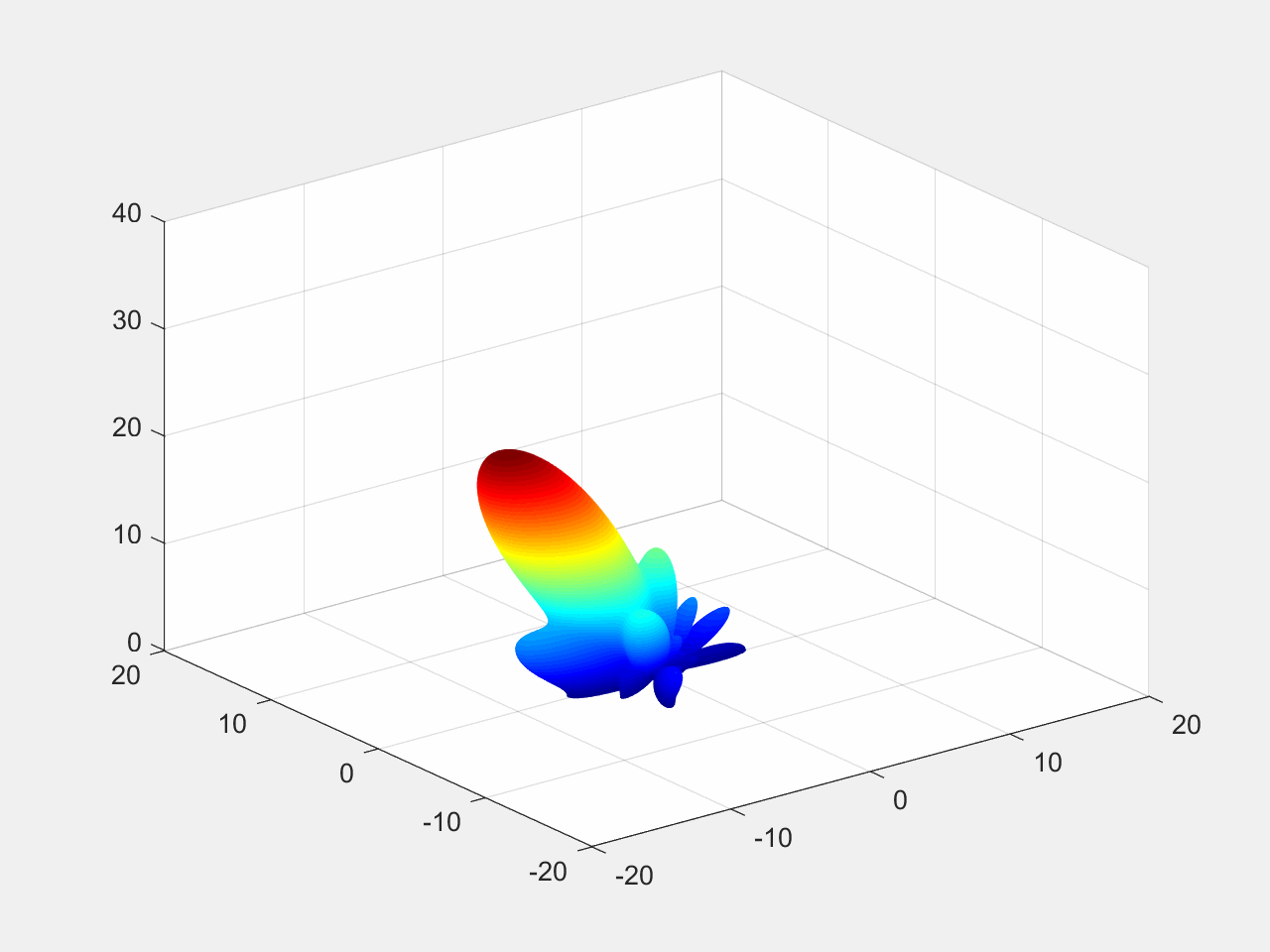

The result is as follows.
