Evolution of an electromagnetic pulse

Beijing Institute of Technology | Ming-Jian Li

The following MATLAB code is a companion code for the course on Artificial Intelligence and Simulation Science. It is designed to calculate the evolution process of an electromagnetic pulse using the Finite-Difference Time-Domain (FDTD) method.

​x
1
% 1D FDTD simulation with pulse
2
clear;
3
ke = 100;
4
% Position of the source
5
ks = 1;
6
% ks = ke / 2;
7
% Number of time steps
8
nsteps = 2000;
9
% Cell size and time stepping
10
c0 = 3.e8;
11
dx = 0.01;
12
dt = dx / (2 .* c0);
13
% Constants
14
cc = c0 * dt / dx;
15
% Initialize vectors
16
ex = zeros(1, ke);
17
hy = zeros(1, ke);
18
% Gaussian pulse
19
t0 = 20;
20
spread = 8;
21
% Gaussian signal
22
for t = 1:nsteps
23
    time(t) = t;
24
    ex_source(t) = exp(- .5 * ((t - t0) / spread) ^ 2);
25
end
26
plot(time,ex_source)
27

28
% Start loop
29
M = moviein(nsteps);
30

31
for t = 1:nsteps
32
    % E field loop
33
    for k = 2:ke - 1
34
        ex(k) = ex(k) + cc * (hy(k - 1) - hy(k));
35
    end
36

37
    % Source
38
    ex(ks) = exp(- .5 * ((t - t0) / spread) ^ 2);
39
    % H field loop
40
    for k = 1:ke - 1
41
        hy(k) = hy(k) + cc * (ex(k) - ex(k + 1));
42
    end
43

44
    plot(ex); axis([1 ke -2 2]);
45
    % plot(hy); axis([1 ke -2 2]);
46
    M(:, t) = getframe;
47
end

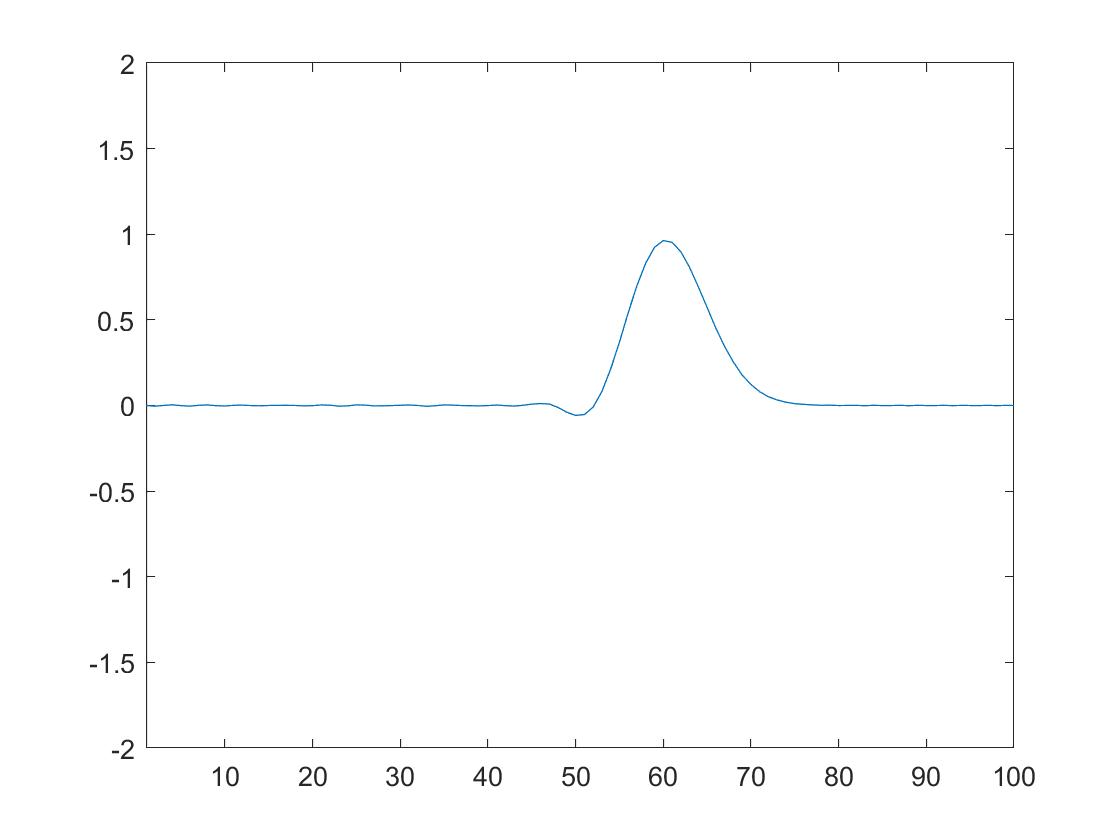

The result is as follows.
