Impact process of a lunar lander

Beijing Institute of Technology | Ming-Jian Li

The following APDL code is a companion code for the course on Artificial Intelligence and Simulation Science. Its function is to calculate the process of impact energy absorption between the honeycomb structure on the underside of a lunar lander and the lunar surface using the finite element method, utilizing a geometric source file websurf.igs (click to download). The following code needs to be executed in ANSYS, APDL is the parameteric language of ANSYS.

x
242
1
fini
2
/clear
3
/FILNAME,moonlander,1
4
!    by Ming-Jian Li
5
/units,SI
6
/dscale,1,1.0
7
! input geometric model
8
/AUX15
9
IOPTN,IGES,SMOOTH
10
IOPTN,MERGE,NO
11
IOPTN,SOLID,NO
12
IOPTN,SMALL,NO
13
IOPTN,GTOLER,FILE
14
IGESIN,'websurf','igs',' '
15
/PREP7
16
hct=1       ! honeycomb thickness
17
rdt=0.05    ! rigid disk thickness
18
tch=3       ! truncated cone height
19
tcbr=1.98   ! truncated cone bottom radius
20
tctr=1.5    ! truncated cone top radius
21
tct=0.01    ! truncated cone shell thickness
22
asoil=5     !soil dims
23
bsoil=5
24
tsoil=0.5
25
gap=0.1     !gap between soil and structure
26
hcsz=0.1    !mesh size
27
hctn=10      !mesh div
28
tol=1e-6
29
hcex=0.3e6  !Young's modulus
30
hcmuxy=0.01 !Poisson's raio
31
hcdens=270  !eff density
32
soilsz=0.2    !mesh size
33
vz=-1      !velocity
34
! element
35
et,1,solid164
36
et,2,shell163
37
! mat1 honeycomb
38
MP,DENS,1,300
39
MP,EX,1,0.3e6
40
MP,NUXY,1,0.01
41
TB,PLAW,1,,,1,
42
TBDAT,1,1e4
43
TBDAT,2,0.1e6
44
TBDAT,3,
45
TBDAT,4,40
46
TBDAT,5,5
47
TBDAT,6,0.5
48
TBDAT,7,
49
! mat2 shell
50
edmp,rigid,2,0,0
51
mp,ex,2,2e5
52
mp,prxy,2,0.3
53
mp,dens,2,37700
54
R,1
55
RMODIF,1,1, , ,tct   ! shell thickness
56
! mat3 soil
57
mp,ex,3,12E6
58
mp,prxy,3,0.3
59
mp,dens,3,1600
60
! mat4 rigid disk
61
edmp,rigid,4,0,0
62
mp,ex,4,2e5
63
mp,prxy,4,0.3
64
mp,dens,4,27700
65
! mat5 rigid ground
66
edmp,rigid,5,7,7
67
mp,ex,5,12E6
68
mp,prxy,5,0.3
69
mp,dens,5,1600
70
! change mm into m
71
arscale,all, , ,0.001,0.001,0.001, ,1,1
72
! move upward
73
agen,2,all, , ,0,0,hct, , 0,1
74
! merge lines
75
numcmp,kp
76
numcmp,line
77
lcomb,1,2
78
lcomb,3,4
79
lcomb,6,7
80
lcomb,11,12
81
lcomb,13,14
82
lcomb,16,17
83
lcomb,19,20
84
lcomb,22,23
85
lcomb,24,25
86
lcomb,30,31
87
lcomb,32,33
88
lcomb,35,36
89
lcomb,38,39
90
lcomb,41,42
91
lcomb,43,44
92
lcomb,48,49
93
numcmp,all
94
! add the rest of the surf
95
*get,lmx,line,,count
96
*get,amx,area,,count
97
l,15,17
98
al,15,16,lmx+1
99
l,11,14
100
al,11,12,13,lmx+2
101
l,6,10
102
al,6,7,8,9,lmx+3
103
l,4,5
104
al,4,lmx+4
105
l,21,23
106
al,21,22,lmx+5
107
l,24,27
108
al,24,25,26,lmx+6
109
l,28,32
110
al,28,29,30,31,lmx+7
111
l,33,34
112
al,33,lmx+8
113
*get,kmx,kp,,count
114
k,kmx+1,0,0,hct
115
l,kmx+1,1
116
l,kmx+1,3
117
al,lmx+9,lmx+10,1,2
118
alls
119
! extrude honey comb & rigid disk
120
alls
121
lesize,all,hcsz
122
lesize,lmx+9,,,2
123
lesize,lmx+10,,,2
124
vext,1,,,0,0,-hct
125
vext,1,10,,0,0,rdt
126
lsel,s,loc,z,-tol,hct-tol
127
lesize,all,,,hctn
128
lsel,s,loc,z,hct+tol,hct+rdt-tol
129
lesize,all,,,1
130
! honeycomb & rigid disk mesh
131
alls
132
vsel,s,,,1
133
vatt,1,,1
134
vsweep,all
135
vsel,s,,,2,11
136
vatt,4,,1
137
vsweep,all
138
! truncated cone
139
alls
140
*get,kmx,kp,,count
141
*get,lmx,line,,count
142
lgen,2,18,19, ,0,0,tch, , 1,0
143
lsscale,lmx+1,lmx+2,,tctr/tcbr,tctr/tcbr,0,,1,1
144
k,kmx+4,0,0,hct+tch
145
l,kmx+1,kmx+4
146
l,kmx+3,kmx+4
147
al,lmx+1,lmx+2,lmx+4,lmx+3
148
rdis=0.2
149
lgen,2,18,19, ,0,0,tch*rdis, , 1,0
150
ratio=tctr/tcbr+(1-tctr/tcbr)*(1-rdis)
151
lsscale,lmx+5,lmx+6,,ratio,ratio,0,,1,1
152
rdis=0.4
153
lgen,2,18,19, ,0,0,tch*rdis, , 1,0
154
ratio=tctr/tcbr+(1-tctr/tcbr)*(1-rdis)
155
lsscale,lmx+7,lmx+8,,ratio,ratio,0,,1,1
156
l,kmx+5,87
157
l,kmx+6,88
158
l,kmx+7,89
159
l,kmx+5,kmx+8
160
l,kmx+6,kmx+9
161
l,kmx+7,kmx+10
162
l,kmx+1,kmx+8
163
l,kmx+2,kmx+9
164
l,kmx+3,kmx+10
165
al,130,lmx+9,lmx+5,lmx+10
166
al,131,lmx+10,lmx+6,lmx+11
167
al,lmx+5,lmx+12,lmx+7,lmx+13
168
al,lmx+6,lmx+13,lmx+8,lmx+14
169
al,lmx+7,lmx+15,lmx+1,lmx+16
170
al,lmx+8,lmx+16,lmx+2,lmx+17
171
! truncated cone mesh size
172
lsel,s,loc,z,hct+rdt+tol,hct+tch-tol
173
lesize,all,,,3
174
alls
175
lesize,lmx+5,,,4,,1
176
lesize,lmx+6,,,4,,1
177
lesize,lmx+7,,,2,,1
178
lesize,lmx+8,,,2,,1
179
lesize,lmx+1,,,2,,1
180
lesize,lmx+2,,,2,,1
181
lesize,lmx+3,,,3,,1
182
lesize,lmx+4,,,3,,1
183
!  truncated cone rigid shell mesh
184
asel,s,loc,z,hct+rdt+tol,hct+tch+tol
185
aatt,2,1,2
186
amesh,all
187
! complete whole model
188
alls
189
csys,1
190
vgen,12,all, , ,0,30,0, , 0,0
191
asel,s,loc,z,hct+rdt+tol,hct+tch+tol
192
agen,12,all, , ,0,30,0, , 0,0
193
csys,0
194
!  moon soil
195
alls
196
block,-asoil/2,asoil/2,-bsoil/2,bsoil/2,-gap,-gap-tsoil
197
*get,vmax,volu,,count
198
vsel,s,,,vmax
199
vatt,3,,1
200
allsel,below,volu
201
lesize,all,soilsz
202
vmesh,all
203
alls
204
! merge nodes
205
alls
206
nummrg,node,1e-9
207
alls
208
*get,nodnum,node,,count
209
*get,enum,elem,,count
210
!create parts
211
!part 1 honeycomb,2 rigid disk, 3 rigid truncated cone ,4 soil
212
edpart,create,
213
! merge rigid bodies
214
edcrb,add,,2,3,
215
!  contact
216
nsel,s,loc,z,-tol,tol
217
cm,body,node
218
nsel,s,loc,z,-gap-tol,-gap+tol
219
cm,ground,node
220
alls
221
edcgen,ESTS,1,4,
222
edcontact,10,0,2,0,1,1,1,4,0
223
nsel,s,loc,z,-tol,hct+tch+tol
224
cm,vehicle,node
225
edve,velo,vehicle,0,0,vz
226
*dim,time,array,2,1
227
*dim,accz,array,2,1
228
accz(1)=9.8/6
229
accz(2)=9.8/6
230
time(1)=0
231
time(2)=100
232
edload,add,ACLZ,,vehicle,time,accz,0
233
/sol
234
nsel,s,loc,z,-gap-tsoil-tol,-gap-tsoil+tol
235
d,all,ux,0
236
d,all,uy,0
237
d,all,uz,0
238
alls
239
time,0.5
240
solve

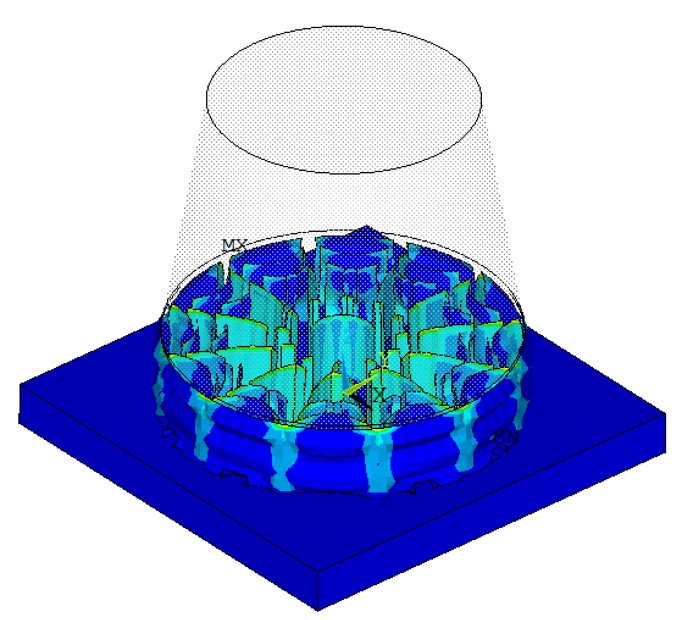

The result is as follows.
