Simulation of beam vibration

Beijing Institute of Technology | Ming-Jian Li

The following APDL code is a companion code for the course on Artificial Intelligence and Simulation Science. Its function is to solve the vibration process of a beam with one end fixed and the other end subjected to force using the finite element method. The following code needs to be executed in ANSYS, APDL is the parameteric language of ANSYS.

​x
1
fini
2
/clear
3
/FILNAME,noodle,1
4
/PREP7
5
/units,SI
6
ET,1,solid185
7
mp,EX,1,40e3
8
mp,PRXY,1,0.3
9
mp,DENS,1,1200
10
a=0.01
11
b=0.01
12
c=0.7
13
block,0,c,-a/2,a/2,-b/2,b/2
14
LSEL,all
15
LESIZE,ALL,a
16
alls
17
TYPE,1
18
MAT,1
19
vmesh,all
20
alls
21
/sol
22
nsel,s,loc,x,0
23
d,all,ux,0
24
d,all,uy,0
25
d,all,uz,0
26
alls
27
deltat=0.1
28
n=100
29
force=1e-4
30
freq=1
31
/SOL
32
antype,trans
33
TRNOPT,FULL
34
*do,i,1,n,1
35
     TIME,i*deltat
36
     nsel,s,loc,x,c
37
     f,all,fy,force*cos(2*3.14*freq*i*deltat)
38
     alls
39
     solve
40
*enddo
41
save

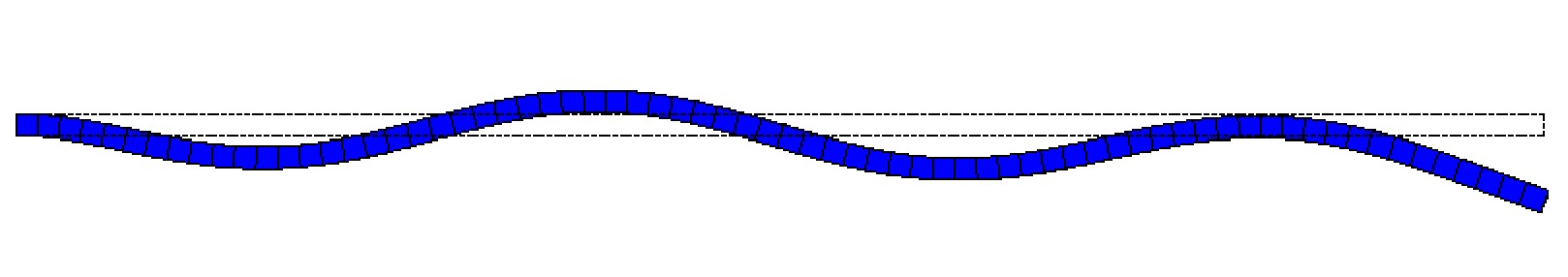

The result is as follows.
