Propagation and reflection of sinusoidal electromagnetic waves

Beijing Institute of Technology | Ming-Jian Li

The following MATLAB code is a companion code for the course on Artificial Intelligence and Simulation Science. It functions to calculate the propagation and reflection of a sinusoidal electromagnetic wave using the Finite-Difference Time-Domain (FDTD) method.

x
1
clear; clc;
2
ke = 100;
3
% Position of the source
4
ks = 1;
5
% ks = ke / 2;
6
% Number of time steps
7
nsteps = 3000;
8
% Cell size and time stepping
9
c0 = 3.e8;
10
dz = 0.01;
11
dt = dz / (2 .* c0);
12
% Constants
13
cc = c0 * dt / dz;
14
% Initialize vector
15
ex = zeros(1, ke);
16
hy = zeros(1, ke);
17
space = zeros(1, ke);
18
for k = 1:ke
19
    space(k) = k*dz;
20
end
21
empty = zeros(1, ke);
22
% sine wave
23
amp = 0.5;
24
omg = 0.1;
25
for t = 1:nsteps
26
    % E field loop
27
    for k = 2:ke - 1
28
        ex(k) = ex(k) + cc * (hy(k - 1) - hy(k));
29
    end
30
    % Source
31
    ex(ks) = amp* sin( omg* t );
32
    % H field loop
33
    for k = 1:ke - 1
34
        hy(k) = hy(k) + cc * (ex(k) - ex(k + 1));
35
    end
36
    clf
37
    plot3(space,ex,empty, 'r', 'LineWidth', 5 );
38
    axis([0 1 -2 2 -2 2]);
39
    set(gcf,'Position',[200 200 1080 720]);
40
    hold on
41
    plot3(space,empty,hy, 'b', 'LineWidth', 5 );
42
    pause(0.001);
43
end

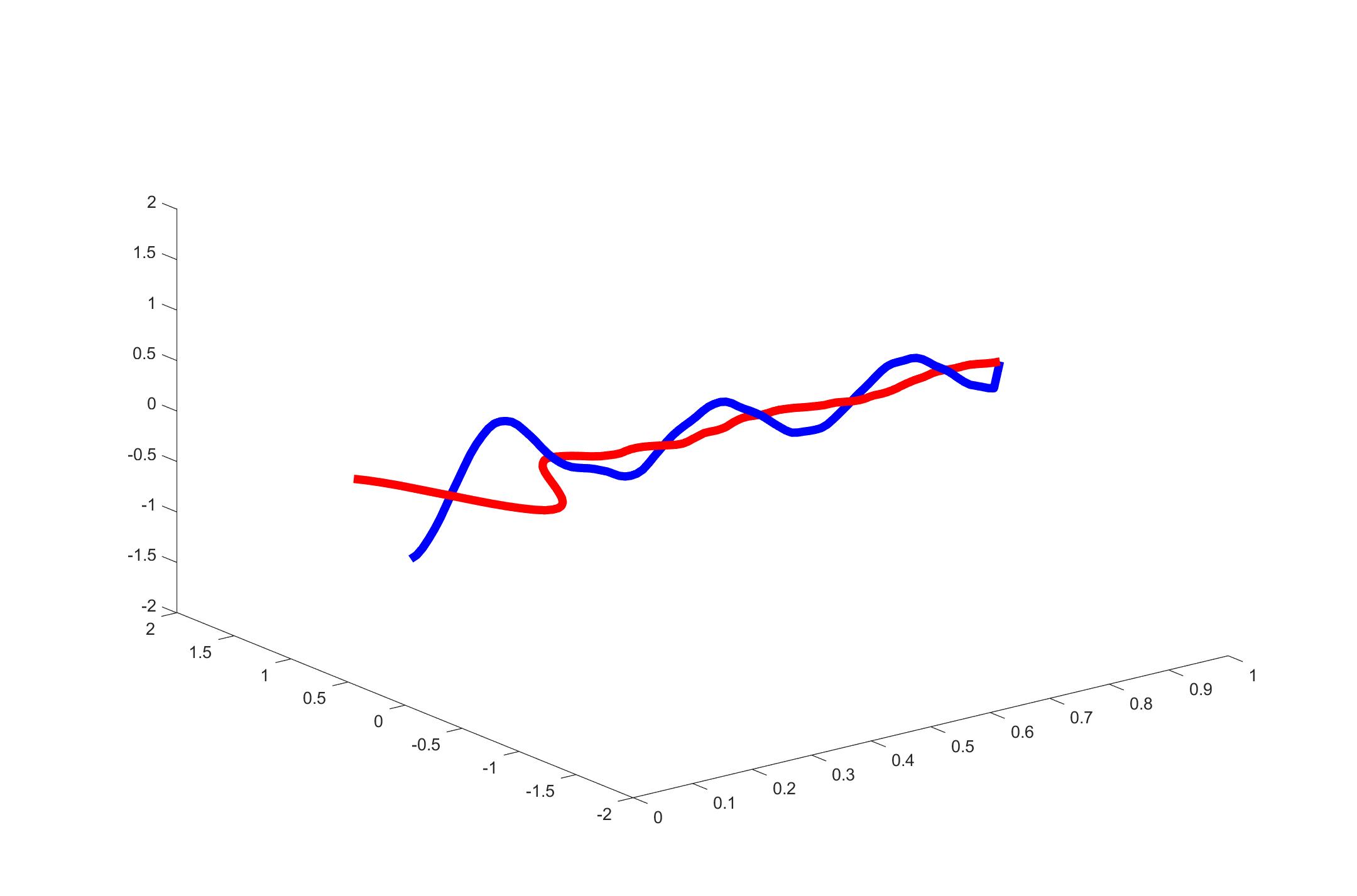

The result is as follows.
